GWeasy.GravfetchApp Class Reference

Public Member Functions
	__init__ (self, root)
	setup_execution_tab (self)
	select_time_csv (self)
	select_channel_csv (self)
	select_gwfout_dir (self)
	toggle_execution (self)
	run_gravfetch_script (self)
	append_output (self, text)
	save_channel_history (self)

Public Attributes
	root = root
str	time_csv_file = ""
str	channel_csv_file = ""
bool	execution_running = False
	process = None
str	gwfout_path = "./gwfout/"
list	loaded_channels = []
	terminal = TerminalFrame(self.root, row=5, column=0, columnspan=2, height=20, width=80)
	status_bar_frame = tk.Frame(self.root, bg="lightgray")
	status_label = tk.Label(self.status_bar_frame, text="Idle", fg="black", bg="lightgray", anchor="w")
	time_button = tk.Button(self.root, text="Select Time CSV", command=self.select_time_csv)
	channel_button = tk.Button(self.root, text="Select Channel CSV", command=self.select_channel_csv)
	gwf_button = tk.Button(self.root, text="Select Output (GWF) Dir", command=self.select_gwfout_dir)
	start_stop_button = tk.Button(self.root, text="Start Execution", command=self.toggle_execution)
	execution_thread = threading.Thread(target=self.run_gravfetch_script, daemon=True)

Detailed Description

Definition at line 605 of file GWeasy.py.

Constructor & Destructor Documentation

__init__()

GWeasy.GravfetchApp.__init__	(		self,
			root )

Definition at line 606 of file GWeasy.py.

Member Function Documentation

append_output()

GWeasy.GravfetchApp.append_output	(		self,
			text )

Send output to the terminal

Definition at line 797 of file GWeasy.py.

Here is the call graph for this function:

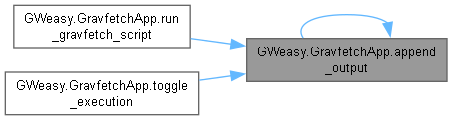

Here is the caller graph for this function:

run_gravfetch_script()

GWeasy.GravfetchApp.run_gravfetch_script

(

self

)

Runs the Gravfetch script logic directly within the GUI.

Definition at line 700 of file GWeasy.py.

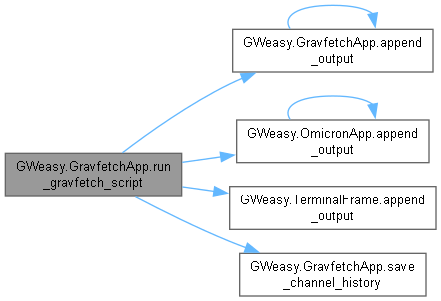

Here is the call graph for this function:

save_channel_history()

GWeasy.GravfetchApp.save_channel_history

(

self

)

Save the selected channels to a JSON file for persistence.

Definition at line 800 of file GWeasy.py.

Here is the caller graph for this function:

select_channel_csv()

GWeasy.GravfetchApp.select_channel_csv

(

self

)

Open file dialog for channel CSV file.

Definition at line 660 of file GWeasy.py.

select_gwfout_dir()

GWeasy.GravfetchApp.select_gwfout_dir

(

self

)

Open file dialog for output dir (folder) selection.

Definition at line 665 of file GWeasy.py.

select_time_csv()

GWeasy.GravfetchApp.select_time_csv

(

self

)

Open file dialog for time CSV file.

Definition at line 655 of file GWeasy.py.

setup_execution_tab()

GWeasy.GravfetchApp.setup_execution_tab

(

self

)

Sets up the Execution tab with buttons, output terminal, etc.

Definition at line 630 of file GWeasy.py.

toggle_execution()

GWeasy.GravfetchApp.toggle_execution

(

self

)

Start or stop the execution of the Gravfetch script.

Definition at line 675 of file GWeasy.py.

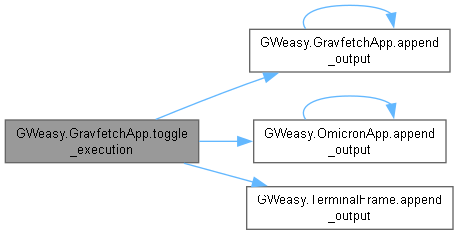

Here is the call graph for this function:

Member Data Documentation

channel_button

GWeasy.GravfetchApp.channel_button = tk.Button(self.root, text="Select Channel CSV", command=self.select_channel_csv)

Definition at line 643 of file GWeasy.py.

channel_csv_file

str GWeasy.GravfetchApp.channel_csv_file = ""

Definition at line 609 of file GWeasy.py.

execution_running

bool GWeasy.GravfetchApp.execution_running = False

Definition at line 610 of file GWeasy.py.

execution_thread

GWeasy.GravfetchApp.execution_thread = threading.Thread(target=self.run_gravfetch_script, daemon=True)

Definition at line 697 of file GWeasy.py.

gwf_button

GWeasy.GravfetchApp.gwf_button = tk.Button(self.root, text="Select Output (GWF) Dir", command=self.select_gwfout_dir)

Definition at line 645 of file GWeasy.py.

gwfout_path

GWeasy.GravfetchApp.gwfout_path = "./gwfout/"

Definition at line 612 of file GWeasy.py.

loaded_channels

list GWeasy.GravfetchApp.loaded_channels = []

Definition at line 613 of file GWeasy.py.

process

GWeasy.GravfetchApp.process = None

Definition at line 611 of file GWeasy.py.

root

GWeasy.GravfetchApp.root = root

Definition at line 607 of file GWeasy.py.

start_stop_button

GWeasy.GravfetchApp.start_stop_button = tk.Button(self.root, text="Start Execution", command=self.toggle_execution)

Definition at line 649 of file GWeasy.py.

status_bar_frame

GWeasy.GravfetchApp.status_bar_frame = tk.Frame(self.root, bg="lightgray")

Definition at line 633 of file GWeasy.py.

status_label

GWeasy.GravfetchApp.status_label = tk.Label(self.status_bar_frame, text="Idle", fg="black", bg="lightgray", anchor="w")

Definition at line 637 of file GWeasy.py.

terminal

GWeasy.GravfetchApp.terminal = TerminalFrame(self.root, row=5, column=0, columnspan=2, height=20, width=80)

Definition at line 628 of file GWeasy.py.

time_button

GWeasy.GravfetchApp.time_button = tk.Button(self.root, text="Select Time CSV", command=self.select_time_csv)

Definition at line 641 of file GWeasy.py.

time_csv_file

str GWeasy.GravfetchApp.time_csv_file = ""

Definition at line 608 of file GWeasy.py.

---

The documentation for this class was generated from the following file:

• C:/Users/HP/Desktop/docs/GWeasy/GWeasy.py
